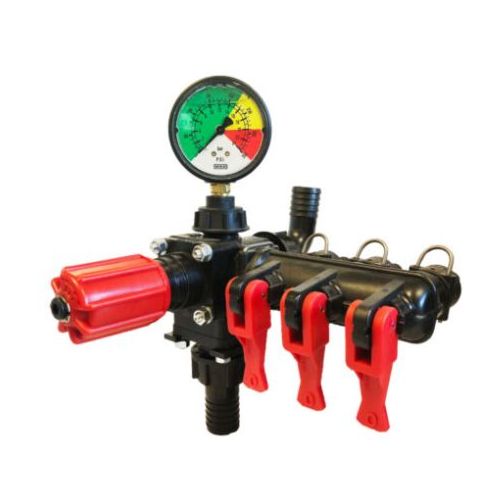

Hypro Control Unit - 3300-0087

Hypro Control Unit - 3300-0087

This remote control unit, for mounting on pump models 9910-D70, 9910-D115, 9910-D135 and 9910-D160, is capable of handling flow rates up to 42.5 gpm (160.9 lpm) and pressures up to 290 psi (20 bar). It includes one built-in relief valve, one 1" HB inlet, three 3/4", 1/2" and 3/8" HB outlets with individual shut-offs. Model 3300-0088 also includes a main bypass lever.

Features:

• For pump models: 9910-D70, D115, D135, D160
• Max flow: 42.5 gpm
• Max pressure: 290 psi
• Port sizes: 1" hose barb inlet, 3 hose barb outlets (1/2 or 3/8") with individual shut-offs
• Pressure gauge: 0-400 psi, color coded, glycerin filled
• Weight: 10 lbs
